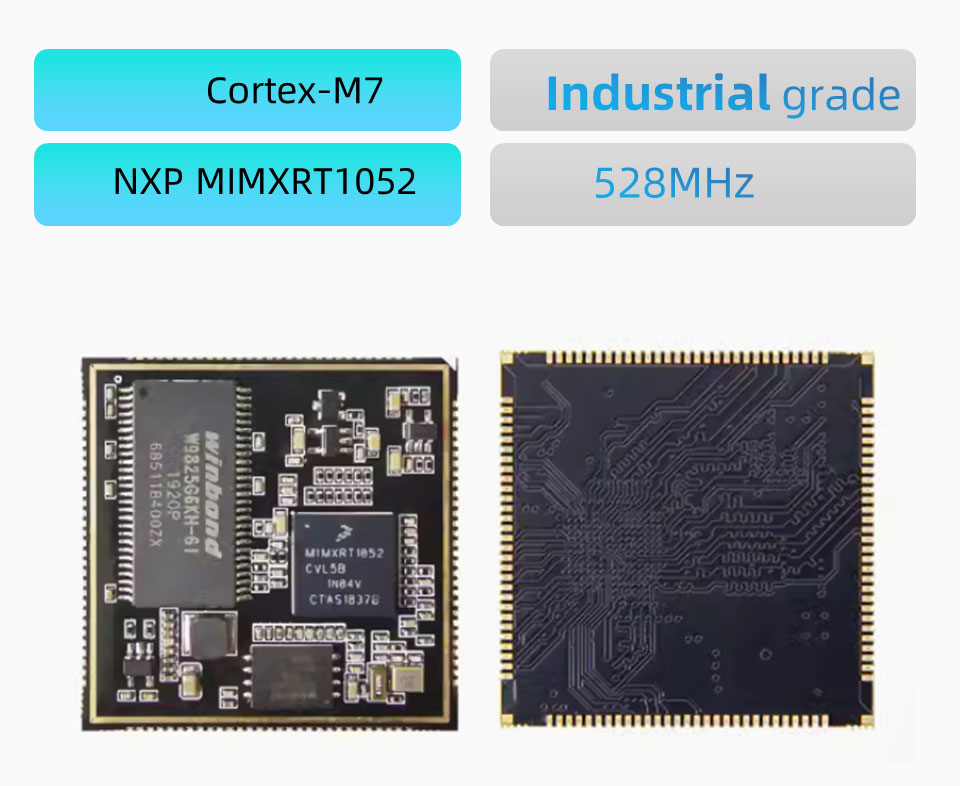

● This RT1052 S2 core board is designed based on the NXP MIMXRT1052CVL5B processor.
● The components of the whole board are made of industrial-grade materials.

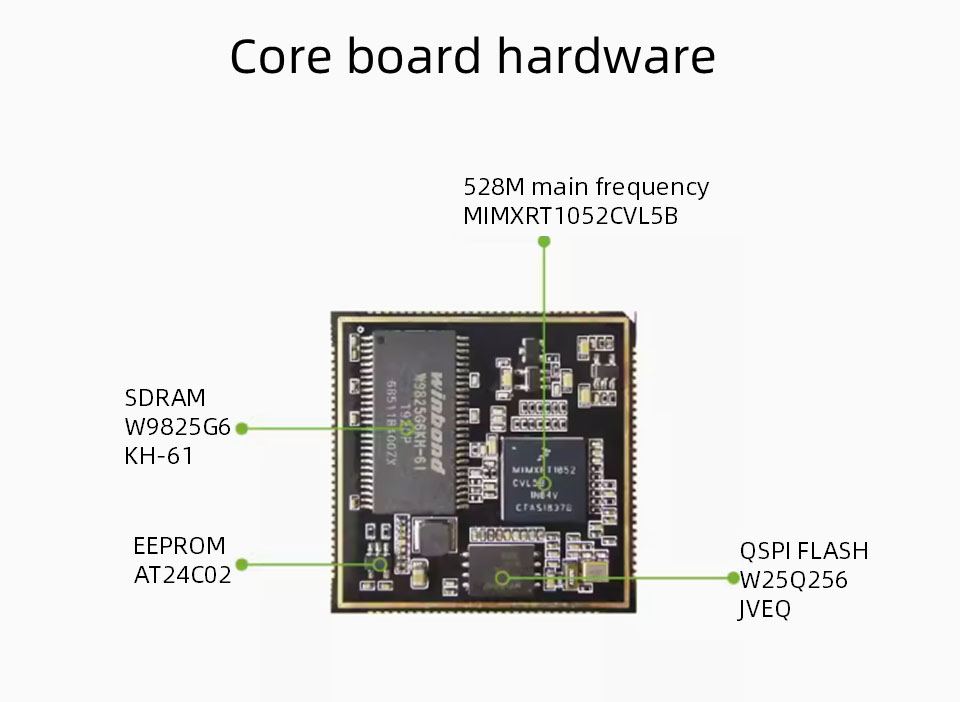

● The hardware resources of the core board include
● 32MB SDRAM, 32MB NOR Flash, and 256B EEPROM.
● The PCB adopts a 6-layer black immersion gold design, with an overall size of 38*38mm, a total of 116 pins, and a pin spacing of 1.0mm. Except for the SEMC bus, the remaining 10 pins of the chip are all led out.
Main chip: MIMXRT1052CVL5B, Cortex-M7 core, main frequency 528MHZ
SDRAM: 2MB, TSSOP package, brand Winbond, industrial grade
FLASH: 32MB, WSON8 package, brand Winbond, industrial grade
EEPROM: AT24C02 256B
Ethernet PHY: None
PCB size: 38*38mm
Power supply: 3.3V
Shield cover: No shield cover
GPIO: 116 pins, 1.0mm pin spacing, except for SEMC bus, all other I0 are led out
Operating temperature: -40~85°C, industrial grade
● LCD: 1 channel
● USB: 2 channels, with high-speed PHY
● SDIO: 2 channels
● I²C: 4
● SPI: 4
● UART: 8
● SAI: 3
● ADC: 2 (16 channels each), 12bit
● PWM: 4
● JTAG: 1 channel
● SPDIF: 2 channels
● CAN: 2
● Note: The above data may be reused, please refer to the core board pin description as a reference design
Note: The board can be customized with a minimum order of 500
